Activating DHCP scopes in Infoblox

/in /by

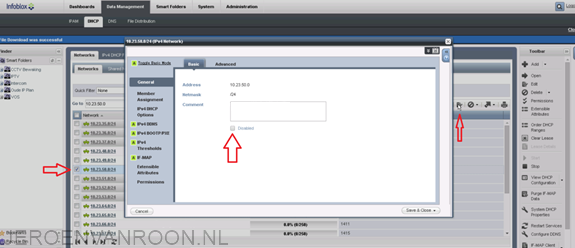

I have been spending time finding out why the Infoblox isn’t giving any DHCP leases. After troubleshooting in the Infoblox i found the checkbox that was simply not activated. The location of the checkbox is shown in the screenshot.

Infoblox

VMware PowerCLI script to add storage and VLAN’s

/in , /by

When deploying multiple VMware hosts you can use the Template feature in vSphere. If you’re not licenced to use the template feature in vSphere you can use the VMware PowerCLI PowerShell commands to quickly add the strorage and the networks.

First thing you got to do is connect to the host:

  • Connect-VIServer -Server esx.jvr.local

To add VLAN’s to a vSwitch use the following command:

  • get-vmhost -name esx.jvr.local | Get-VirtualSwitch -name vSwitch0 | new-VirtualPortGroup -name “LAN” -vlanid 0
  • get-vmhost -name esx.jvr.local | Get-VirtualSwitch -name vSwitch0 | new-VirtualPortGroup -name “PVS” -vlanid 2310

To add NFS storage use the following commands:

  • get-vmhost -name esx.jvr.local | New-Datastore -Nfs -Name ESX1 -Path /NAS_ESX1 -NfsHost 10.10.10.50

This can also be done at the cluster level. The following command’s can be used:

  • Get-Cluster “CLUSTER_1” | Get-VMHost | Get-VirtualSwitch -name vSwitch1 | New-VirtualPortGroup -name “PVS” -VLanId 2310
  • Get-Cluster “CLUSTER_1” | Get-VMHost | Get-VirtualSwitch -name vSwitch1 | New-VirtualPortGroup -name “HB” -VLanId 2309

Basic App-V 5 Client PowerShell Commands

/in , , /by

These PowerShell commands should be run on an App-V 5 Client computer. The first step is importing the App-V module, as it’s not imported by default.

  • Import-Module AppvClient

This must be run to import the module to allow PowerShell to run PowerShell cmdlets for the App-V 5 Client.

  • Get-Command -Module Appvclient

This gets a list of PowerShell commands for the App-V Client module.

  • Add-AppvPublishingServer -Name [Name of App-V Publishing Server] -URL [URL]

Adds the specified App-V 5 Publishing Server to the App-V 5 Client.

  • Sync-AppvPublishingServer -Name [Name of App-V Publishing Server]

Syncs the App-V 5 Client’s apps with the App-V 5 Publishing Server.

  • Add-AppvClientPackage \\Servername\Sharename\Appfilename.appv

Adds a package to the local App-V 5 Client.

  • Add-AppvClientPackage \\Servername\Sharename\Appfilename.appv | Publish-AppvClientPackage -Global
